Cable Probe
Find a Distributor
CableTracker Probe
Tone Detector

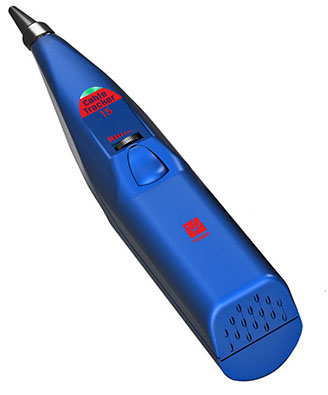

The CableTracker Probe CT15 detects a trace tone transmitted by the CableTracker CT10 or CT12 Signal Generators.
When the CT15 Probe is near the correct cable pair or punch down, it emits an audio sound at a frequency and pattern generated by the CableTracker CT10, CT12 or other Tone Generators.
<
>
Request a Quote
Buy Online
Talk to an Expert
Overview

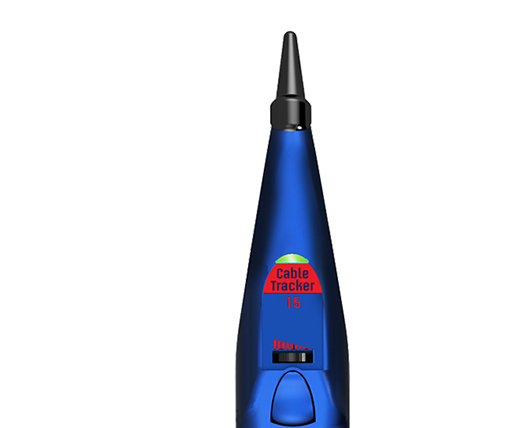

Place the CableTracker CT15 non-conductive probe tip near the cable or termination to be identified and the Probe emits an audible signal from the tone generator that is attached to the cable. The audible signal is loudest when the Probe is near the correct cable or termination point. The volume can be adjusted by rotating the thumb wheel located above the button.
The CT15 Probe also features one button operation. Press and hold the TEST button and ensure the green LED is illuminated. The LED light from the light pipe indicates that the unit is on and the battery has adequate voltage.

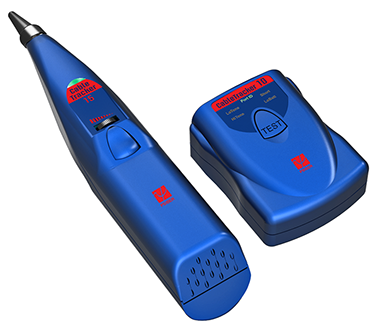

The CableTracker Probe (CT15) incorporated volume control, non-conductive plastic tip and complete compatibility with existing toners on the market. The CableTracker can be used with the CableTracker CT10 and CT12 Tone Generators, CableTool CT50, PingerPro Series and the LanExpert 80.
Features
The CableTracker Probe (CT15) incorporated volume control, non-conductive plastic tip and complete compatibility with existing toners on the market.
CT15 Features
Time Saving Features
CT15 Features
- Non-conductive probe tip
- Power “On” indicator
- Volume Control
Time Saving
The CableTracker CT15 incorporate several time and money saving features:
- Pairs with the CableTracker CT10, CT12 or other Tone generators.
- Easy One Button Operation.
- Can be used with our other products that incorporate a Tone Generator
Model & Accessories
| Model Number | Description | |
| CT15 | CableTracker Probe |
Specifications
1.4"
8.0"
| Dimensions | Approximately 8.0 in x 1.4 in x 1.5 in (20.3 cm x 3.6 cm x 3.8 cm) |
| Weight | 3.5 Oz |
| Reception Frequencies | Broadband 100Hz - 10kHz |
| Power | 9 Volt Battery |
| Temperature range | Operating: 32°F to 122°F (0 °C to +50 °C) |
| Storage: 14°F to +131°F (-10°C to +55°C) | |
| Warranty | One Year. |
First Response Tools for IT Specialists
Related Products

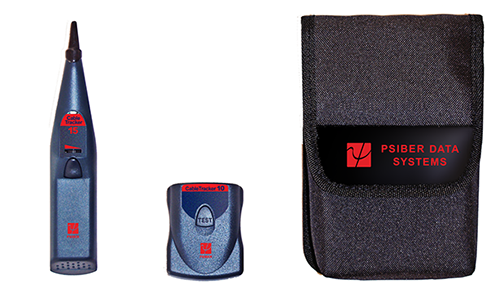

CableTracker Network ID Kit CTK1015
