Tone & Probe Kits

Network Cable and Port Identifier

Traditional Tone Generators were designed for one primary mission; to identify the termination point of a cable. Most toners on the market offer RJ-11 hard-wired modular connection. That's because they were designed mostly to be used in the Telecommunication market. This does nothing for the LAN technician who is faced with Ethernet RJ-45 jacks or patch cords. The CableTracker Tone & Probe Kits were designed to accommodate both Computer Network cabling and Telephony cabling. There are 2 types of Tone & Probe Kits:

  • The CableTracker CTK1015 Tone Generator traces cables with two different tone frequencies and patterns.  The CTK1015 also identify cable termination ports by  blinking the LEDs on the switch.
  • The CableTracker CTK1215 Ultra High Power Tone Generator is up to 10 times more powerful than other generators and traces tone signals on high performance twisted pair, coaxial and even shielded cables. It also test continuity for Opens, Shorts and High Resistance Shorts.

Request a Quote

Buy Online

Talk to an Expert

Overview

The CableTracker Network Tone & Probe Kit is designed for network managers and technicians with a convenient RJ45 interface which allows connection to a network.

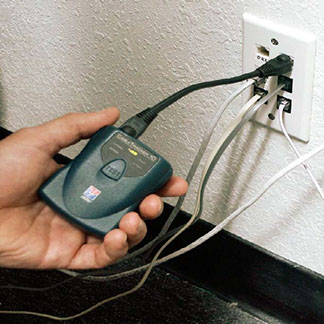

The CableTracker CTK1015 has 2 different trace tone frequencies and 2 different audio patterns for flexibility to optimize cable identification in a wide variety of network configurations The CTK1015 features a Port ID function that blinks the link light verifying cable connectivity. This feature also provides a simple and effective method to identify switch or hub port assignments on active networks. Three different blink rates are provided to ensure compatibility with equipment from a wide range of manufacturers.

The Ultra High Power CableTracker CTK1215 Tone Generator enables signal detection on cables miles away and makes hearing a tone through walls, ceilings and enclosures easier with a power level far greater than other tone generators. The amazing 190mWatts of output power reduces maintenance times by making it easier to trace and identify cables used in Network, CATV, Audio/Video, Security and Telephone applications.  The unit has a continuous run mode and an Auto power down mode to conserve battery life. Quick continuity test allows the CTK1215 to detect Open, Shorts and High Resistance Shorts between the test leads to verify the wire is good.

Features

The CableTracker Tone & Probe Kits are designed to accommodate both Computer Network and Telephone cabling.

 CTK1015 Features

CTK1215 Features

CT12 Ultra High Power

Time Saving Features

CTK1015 Features



  • Test both active and inactive (dark) cables
  • Two selectable tone frequencies and two different patterns allow multiple technicians to work on a network at the same time
  • Three selectable port ID blink rates for the widest compatibility with LAN equipment (Blinks @ rate of transmitted signal)
  • Detects short or open circuits
  • Connection choice - Banana Plug to alligator clip (two) or RJ- 45 Patch Cable
  • Low battery indicator
  • Non-conductive probe tip
  • Power “On” indicator - Probe
  • Volume Control
  • Ergonomically designed



1 - RJ-45 Patch Cable











1 -  Banana Plug to Alligator Clip Leads (Black)









1 -  Banana Plug to Alligator Clip Leads (Red)

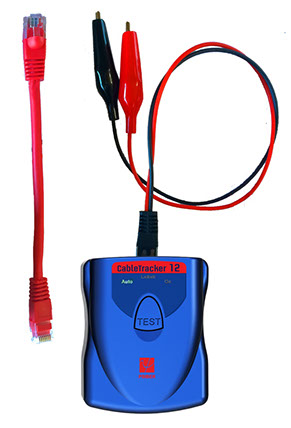

CTK1215 Features:



  • The Most Powerful Tone Generator Available
  • Ultra High Power cable tracing system with 190 mW of output power
  • Continuity test utilizes a bi-colored LED to indicate resistance between the test leads
  • Detects Opens, Shorts and High Resistance Shorts
  • Two selectable operating modes -- continuous or auto power down
  • Connection choice - RJ-45 to alligator clip, or RJ-45 Patch Cable (Other options are available)
  • Low battery indicator
  • Non-conductive probe tip
  • Power “On” indicator - Probe
  • Volume Control
  • Ergonomically designed

1 - RJ45 to BNC + BNC to F (Optional)











1 - RJ45 to Bed of Nails Alligator (Optional)



1 - RJ-45 Patch Cable











1 -  RJ-45 to Dual Alligator Clip Leads

Power Comparison



The CableTracker CT12 Ultra High Power Tone Generator is up to 10 times more powerful than other generators. The CableTracker CT12 incredible 190mW power output helps to quickly and accurately solve the most difficult cabling installation and maintenance jobs.

The output power comparison chart below shows the CableTracker CT12 is by far the most powerful Tone Generator that you can take on a job.

Time Saving



The CableTracker CTK1015 and CTK1215  incorporate several time and money saving features:

  • The RJ-45 male connection and the alligator clips are detachable and commonly available, meaning cord failure won't obsolete your tester.
  • Auto power down extends battery life
  • Built-in low battery indicator warns when battery replacement is required, saving unexpected down time searching for batteries.
  • Alligator clips are used for punch down blocks or non-terminated cables.
  • Easy One Button Operation.

Model & Accessories

Model Number Description

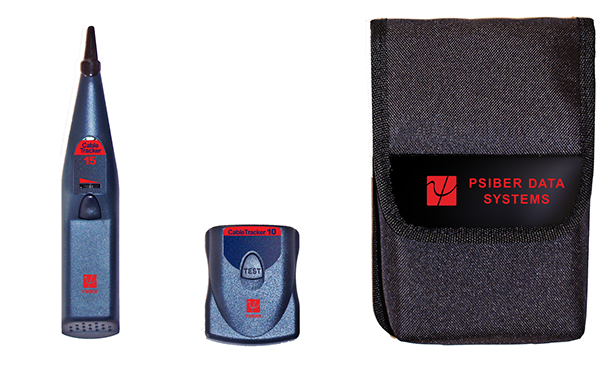

CTK1015 CableTracker Network ID Kit - includes CT10 & CT15

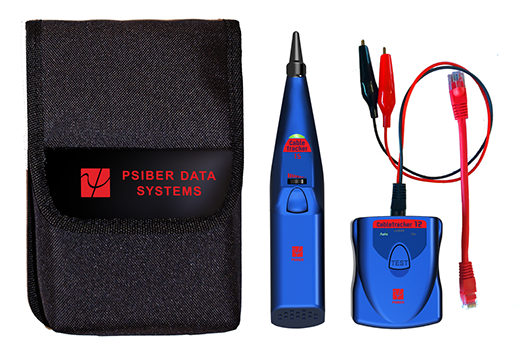

CTK1215 High Power CableTracker Network ID Kit - includes CT12 & CT15
Accessory Number Description
TL45BC RJ-45 to BNC and BNC to F Adapters
TL45BN RJ-45 to Bed of Nails Alligator Clips Adapter
TL45SA RJ-45 to Alligator Clips Adapter
PC06R RJ-45 Cat5e Patch Cable (6 inch Red)
TLBPSA Banana Plug to Alligator Clips Adapter (Black and Red - CT10 Only)
CC-2 Carrying Case for CTK1015, CTK1215, CT50, PNG65, LM35, LMK3515

Specifications

1.4"

3.0"

2.40"

8.0"

Dimensions (CT10 & CT12) Approximately 3.0 in x 1.4 in x 2.4 in (7.6 cm x 3.6 cm x 6.1 cm)
Dimensions (CT15) Approximately 8.0 in x 1.4 in x 1.5 in (20.3 cm x 3.6 cm x 3.8 cm)
Weight 3.5 Oz
Tone Frequency (CT10) Lo Tone - 1kHz; Hi Tone - 8kHz
Tone Frequency (CT12) Alternating 900Hz & 1000HZ
Reception Frequencies (CT15) Broadband 100Hz - 10kHz
Power 9 Volt Battery
Temperature range Operating: 32°F to 122°F (0 °C to +50 °C)
Storage: 14°F to +131°F (-10°C to +55°C)
Warranty One Year

Documents & Downloads

       Documents
       CableTracker CTK1015 Datasheet
       CableTracker CTK1215 Datasheet
       CableTracker CTK1015 User Guide
       CableTracker CTK1215 User Guide

Download

Download

Download

Download
