LanMaster 35

Power & Link Tester

The LanMaster 35 VoIP, PoE & Link Tester is ideal for installing and maintaining computer Local Area Networks (LANs) using Power over Ethernet (PoE).  This instrument conducts power tests with actual loads. Loop resistance measurements quickly identify non-functional links and marginal conditions that can cause intermittent problems. When a powered device such as a VoIP phone, wireless access point or security camera is connected to the network, LanMaster 35 ensures it will operate properly. It also identifies 10/100/1000BaseTX link speed and duplex mode.

  • Conduct a power test with an actual load to verify the amount of power available
  • Identify speed / duplex modes for 10/100/1000baseTX links
  • Measure cable length (when not connected to active device) and transmit link activation signals for port identification
  • Transmit a tone signal that allows the cable to be traced

Request a Quote

Buy Online

Talk to an Expert

Overview

The LanMaster 35 identifies whether power is IEEE 802.3af compliant or a legacy configuration, such as Cisco Inline power, for correctly connecting powered devices. The unit measures Loop Resistance to quickly identify damaged cables and bad punchdowns that cause intermittent problems or equipment malfunction.

The LanMaster 35 provides Link speed and duplex mode testing capabilities for verifying connectivity of a powered or unpowered 10/100/1000BaseTX Link. The unit measures cable length and can be connected to a wall outlet to identify a connected port on a switch or hub. The LanMaster 35 is an essential tool for installing and maintaining networks that utilize the latest PoE (Power over Ethernet) technology.



Features

Every technician, service provider and installer can now afford to have a LanMaster 35. It is an essential tool for installing and maintaining networks that utilize the latest PoE (Power over Ethernet) technology.

LM35 Features

Technical Overview

Comparison

LM35 Features



  • Tests network cable pairs for Power over Ethernet (PoE)
  • Identifies the power type as IEEE 802.3af, Cisco Inline or Non-Standard
  • Simulates a network device for making power measurements under actual loaded conditions
  • Displays voltage, polarity and mid-span or phantom configuration for powered wire pairs
  • Identifies damaged cables and bad punchdowns by measuring wiring Loop Resistance
  • Detects 10/100/1000 BaseTX Link speed and duplex mode
  • Measures cable length and open or short condition
  • Provides Port ID function (link light activation) for identifying connected ports
  • Applies a tone signal for tracing cables with the CT15 CableTracker Tone Probe

Overview



The LanMaster 35 Power and Link Tester provides seven different test capabilities:



  1. Tests network connections for IEEE 802.3af, Cisco pre-standard and non standard types of power
  2. Conducts a power test with an actual load to verify the amount of power available
  3. Measures Link Resistance
  4. Identifies speed and duplex modes for 10/100/1000baseTX Ethernet Links
  5. Provides a Port Identification function with selectable blink rates to locate which port on a hub or switch that a wall outlet is connected
  6. Measures the cable length (only when the cable is not connected to active equipment)
  7. Transmits a tone signal that allows the cable to be traced or a punchdown identified with the CableTracker 15 Tone Probe.

LanMaster Series Comparison:



Coming Soon

Model & Accessories

Model Number Description

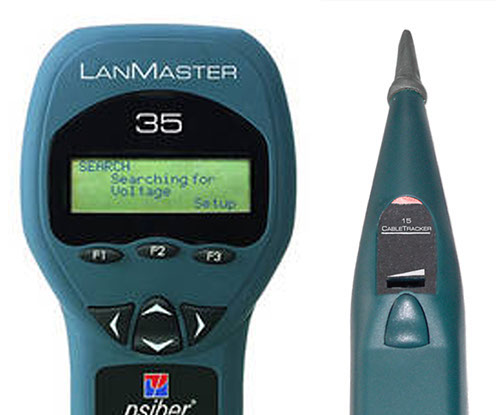

LM35 LanMaster 35 PoE/VoIP Tester
LMK3515 LanMaster 35 PoE/VoIP Tester Kit - (LM35, CT15 and CC2)
Accessory Number Description
CC-2 Carrying Case for CTK1015, CTK1215, CT50, PNG65, LM35, LMK3515

Specifications

3.2"

7.0"

Dimensions Approximately 7.0 in x 3.2 in. x 1.4 in. (178 mm x 81 mm x 36 mm)
Weight 9 ounces (250 grams)
Power Four AA alkaline batteries
Network Types 1000baseTX, 100baseTX (IEEE 802.3u), 10baseT (Not for use with 100baseT4 equipment)
PoE “PoE Standard” (complies with IEEE 802.3af), “Cisco” (Cisco pre-standard power) or “Non Standard”
Connector Type One RJ-45
CableType UTP/STP
Temperature range Operating: 32°F to 122°F (0 °C to +50 °C)
Storage: 14°F to +131°F (-10°C to +55°C)
Warranty One Year
