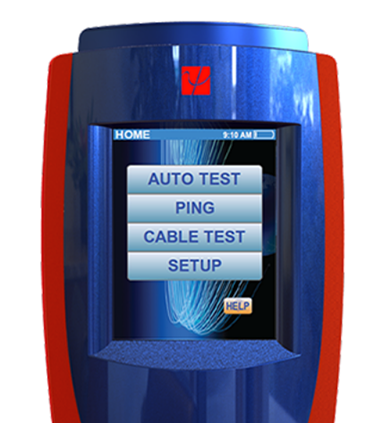

PingerPro Series

For solving cable and network problems

The PingerPro provides a powerful combination of physical layer tools to troubleshoot copper and fiber links and LAN tools to identify and repair a wide range of network problems. Whether you are installing new network drops or devices, monitoring performance or troubleshooting problems, the PingerPro quickly provides answers you need:

  • Is this cable wired correctly?
  • Does my switch support PoE? (PRO 71 & 76 only)
  • Where is a cable fault located?
  • Is this wall outlet connected?
  • What speed and duplex do I need to set to be compatible with the far end device?
  • What port on a switch is connected to the outlet that I am testing?
  • Can I connect to servers and the Internet with IPv6?

Request a Quote

Buy Online

Talk to an Expert

Overview

The PingerPro has an extended feature set that will make it even easier for IT specialists to meet the next level of growing challenges. We have added cable testing with fault location, Gigabit Ethernet capability, advanced IPv6 support, and Link Data (LLDP/CDP) to an already powerful feature set that you use every day. The PingerPro 71/76 has added PoE Testing, enhanced length testing, and wiremap terminator detection.

As a result, the PingerPro is the complete first response tool, designed to solve and manage your most frequent network challenges and reduces downtime.

Tests are based on user configurable profiles which can be stored in advance and selected for different job sites or requirements. All results can be saved internally and exported to the PingerPro Tools application for archiving and report generation.

The PingerPro+Fiber Model 75/76 comes standard with both Single Mode and a Multimode interchangeable modules in addition to the 10/100/1000BaseT RJ-45 interface. The Single Mode module has a 1310nm wavelength and a 10Km range. The Multimode module has a 850nm wavelength and a 100M range.

Using either of these modules, the transmitted and received power can be measured and displayed. Others fiber modules are available as options. Now you can verify connectivity using a Ping test over both copper and fiber links.

Features

The PingerPro Series provides a powerful combination of physical layer tools to troubleshoot copper and fiber links and LAN tools to identify and repair a wide range of network problems.

 Auto Test

Link Test

Ping & Trace Route

PoE/PoE+

Cable Tests

LLDP/CDP

Fiber

PRO Comparison

Auto Test



AutoTest quickly provide connectivity, device, port and security information you require to solve a majority of the problems found in networks.



Users can define the AutoTest button to include a single test or a series of tests to match their test requirements. It has never been easier to perform tests, find problems, get solutions and document results.



User Defined Profiles



With up to 10 saved profiles, the PingerPro allows you to create and save network specific information to minimize set up time on site.



IPv6 Capability



The PingerPro provides important IPv6 protocol compatibility testing needed as governments, businesses and other organizations make the switch to the new era of the Internet. The IPv6 test capability simplifies the transition and verifies that your network supports IPv6 traffic.

Link Test



Check if a port is operational and display speed and duplex information to verify compatibility with connected equipment. Verify connection at 10/100/1000BaseT over copper or 1000BaseX over fiber. Tests include Link speed and duplex mode (actual and advertised) for copper and installed fiber module configuration and transmitted/received power levels for fiber.



MAC Cloning



Clone and troubleshoot a problem device to see if the issue is with the device or the network. For example, clone and troubleshoot a printer on any troubling networked device.





Ultimate Ping Test



 Whether you have a SOHO, SMB, or Enterprise network, you can verify connectivity with a Ping test that is configured for your specific requirements.



Send a single, a burst or a continuous Ping. The payload size can be adjusted from 56 bytes to 1516 bytes as well as the interval between pings and the timeout duration for the PING Response. A VLAN Tag can be added to the packet and the Priority Number can be specified. Ping a single, a group or a range of IP addresses. Even the entire subnet can be selected.



Ping Responses can show IP addresses available for assignment, round trip time for measuring traffic loading MAC ID to identify device manufacturer, packet loss, domain names and other important network information.



Trace Route

The Trace Route diagnostic is performed by selecting one of the PING results. Trace Route provides a method for viewing the path that packets travel between two devices. Each hop is shown with the transit time for the hop. This information is used to identify low bandwidth links or heavily congested routers that can cause poor network response times.

PoE & PoE+ Testing



The PoE test will search for IEEE Standard Power on the port under test. The PoE Screen displays the wire pairs that are powered, the voltage measured and the type of PoE Power detected. Power detected on pairs 12-36 is called an Endspan. Power detected on Pairs 45-78 is called Midsapn. Power detected on all pairs is called Allspan. (PingerPro 71 & 76 only)

Wiremap

The PingerPro Wire Map feature (with included terminator) verifies if a cable is wired correctly or has an open, short, cross-over, mis-wire or split pair. The cable wire map and any fault details are displayed in a color graphic for quick verification of results.



Length

The PingerPro also has a Time Domain Reflectometry (TDR) capability to measure the length of each wire pair in a cable or the distance to an open or short cable fault. The TDR measurement is done from one end of a cable and can identify unused cables by showing an open on all four pairs.



Tone

The built-in tone generator can be used with the optional CableTracker Probe to trace cables even in walls and ceilings. PingerPro has five distinct tones which allows the user to select the best tone for the working environment or have multiple users testing in the same area.



Port ID

The PingerPro’s Port Identification (Port ID) feature is used to identify a switch port connection. The unit transmits a repetitive signal that blinks the Link LED on a switch port for visual determination of a connection. This is especially useful when trying to identify which port a remote wall outlet is connected. Three different blink rates are provided to ensure compatibility with a wide range of switch types.

LLDP/CDP/EDP Support



The PingerPro uses IEEE Link Layer Discovery Protocol (LLDP) and Cisco® Protocol (CDP) to display port speed, duplex and number.



Display critical switch information including: Switch name and model, IP address, Port, slot, VLAN and software revision. View additional information designated by the Manufacturer. Identify incompatible switches that slow or bog down network efficiency.



Fiber



The PingerPro +Fiber Model 75 & 76 uses interchangeable fiber optic modules that measure transmitted and received optical power.  Optical power measurement is an essential capability for troubleshooting and maintaining a fiber based network. Monitoring the actual transmitted and received optical power levels can identify when a Link has excessive loss or the far end transmitter is failing.



PingerPro Series Comparison Chart



The PingerPro 70/71 are Copper only testers. The PingerPro 75/76 are Copper and Fiber testers. The PingerPro 71/76 has added PoE Testing, enhanced length testing, and wiremap terminator detection.

Models Connections 10/100/1000 BaseT Copper 1000 BaseX Fiber PoE/PoE+ Ping/ TraceRoute CDP/LLDP IPv4/IPv6 Detection CableTests  WiremapDetection
PRO 70 1 RJ-45 ü û û ü ü ü ü û
PRO 71 1 RJ-45 ü û ü ü ü ü ü+ ü
PRO 75 1 SFP, 1 RJ-45 ü ü û ü ü ü ü û
PRO 76 1 SFP, 1 RJ-45 ü ü ü ü ü ü ü+ ü

Model & Accessories

Model Number Description
PRO70 PingerPro Cable and Network Management Tester
PRO7015 PingerPro Cable and Network Management Tester + CT15 & CC-DLX1
PRO71 PingerPro PoE Cable and Network Management Tester
PRO7115 PingerPro PoE Cable and Network Management Tester + CT15 & CC-DLX1
PRO75 PingerPro+Fiber Cable and Network Management Tester
PRO7515 PingerPro+Fiber Cable and Network Management Tester + CT15
PRO76 PingerPro+Fiber PoE Cable and Network Management Tester
PRO7615 PingerPro+Fiber PoE Cable and Network Manag. Tester + CT15 & CC-DLX1
FKLC01 Fiber Test Kit for PingerPro Series (MM & SM)
Accessory Number Description
PPWMT Terminator, Wire Map, PingerPro Series
PROSTY Stylus, PingerPro Series
PC12R RJ-45 Cat6 Patch Cable (12 inch Red)
PPFD Flash Drive, USB, 1GB, PingerPro Series
ADAP5010 Adapter, AC, 5.0VDC, 1.0A, USB A Male Connector with USB A to mini B 6ft Cable
PRO71U Upgrade from a PingerPro 70 to PingerPro 71
PRO76U Upgrade from a PingerPro 75 to PingerPro 76
CC-80L Carrying Case for LANEXPERT, PRO7015, PRO7115, PRO7515, PRO7615
CC-70L Carrying Case for PRO70, PRO71, PRO75, PRO76

Specifications

2.0"

3.3"

6.75"

Dimensions Approximately 3.3 in x 2.0 in x 6.75 in (8.4 cm x 5.1 cm x 17.1 cm)
Weight 24 Oz (700 g)
Display 2.9-inch Color Touchscreen, 800:1 contrast ratio, 500 cd/m2 max brightness
Battery Lithium ion Rechargable battery pack
Power AC Power Adaptor 110/240 VAC (Charging via computer USB port or power adapter)
Battery Life Nine Hours of Test Time
Languages English, German, French, Spanish, Chinese
Temperature range Operating: 32°F to 122°F (0 °C to +50 °C)
Storage: 14°F to +131°F (-10°C to +55°C)
Warranty One Year. Extended Warranty Available

Documents & Downloads

       Documents
       PingerPro Series Datasheet
       PingerPro Series QuickStart Guide
       PingerPro Series User Guide

Download

Download

Download

       Videos
       Using the PingerPro to Solve Connectivity Problems
       Using the PingerPro for Cable & Port ID Testing
       Using the PingerPro to Install & Troubleshoot Fiber Cables

View

View

View

       Firmware Download
       New 4/7/17- PingerPro Update 2.80
       Current PingerPro Firmware older than 2.0?

Download

Download

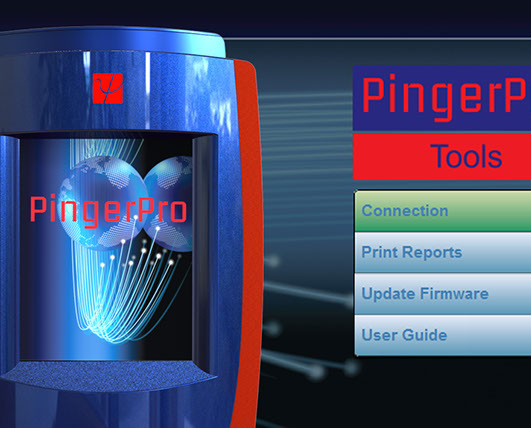

       Software Download
       New 07/05/17- PingerPro Tools 1.4.1
       For data saved with PingerPro firmware version with older than 2.00

Download

Download
